UBERTI 1873 Cattleman Old Model Revolver

UBERTI 1873 Cattleman Old Model Revolver

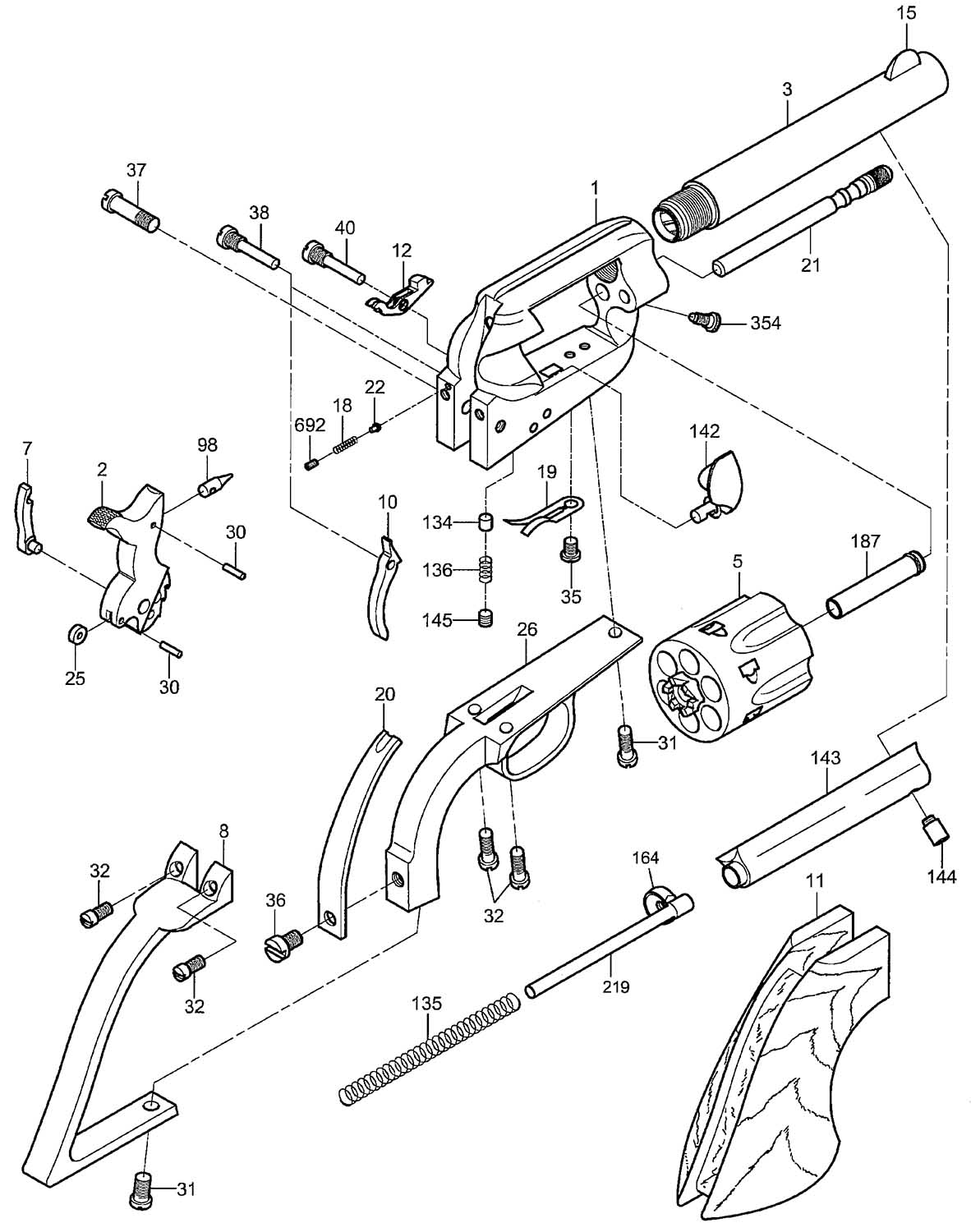

Rozkres revolveru výrobce A.UBERTI model 1873 Cattleman Old Model.

0514

N. Code No. Q.ty Description
1 A0502001 1 CATTLEMAN O.M. FRAME ASSEMBLY
2 A0502002 1 SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY
3 0415003 1 BARREL 7.1/2″ .45LC
5 0410005 1 CYLINDER .45LC
7 0400007 1 HAND
8 0005008 1 STEEL BACKSTRAP
10 0400010 1 TRIGGER
11 0005011 1 GRIPS
12 0400012 1 BOLT
15 0410015 1 FRONT SIGHT
18 0400018 1 HAND SPRING -COIL TYPE
19 0000019 1 TRIGGER BOLT SPRING
20 0400020 1 MAINSPRING
21 0502021 1 BASE PIN
22 0400022 1 HAND PIN
26 0005026 1 STEEL TRIGGERGUARD
31 0000031 2 TRIGGERGUARD SCREW
32 0000032 4 REAR BACKSTRAP SCREW
35 0000035 1 SCREW
36 0000036 1 MAIN SPRING SCREW
37 0400037 1 HAMMER SCREW
38 0000038 1 TRIGGER SCREW
40 0000040 1 BOLT SCREW
135 4500135 1 EJECTOR SPRING
143 0400143 1 EJECTOR TUBE
144 0400144 1 EJECTOR TUBE SCREW
187 0400187 1 BASE PIN BUSHING
219 B0410219 1 SAA EJECTOR O.M.4.3/4″.45LC ASS.
354 0502354 1 SAFETY BASE PIN SCREW
692 0400692 1 HAND PIN SCREW
