UBERTI 1873 Cattleman Carbine Revolverová karabina

UBERTI 1873 Cattleman Carbine Revolverová karabina

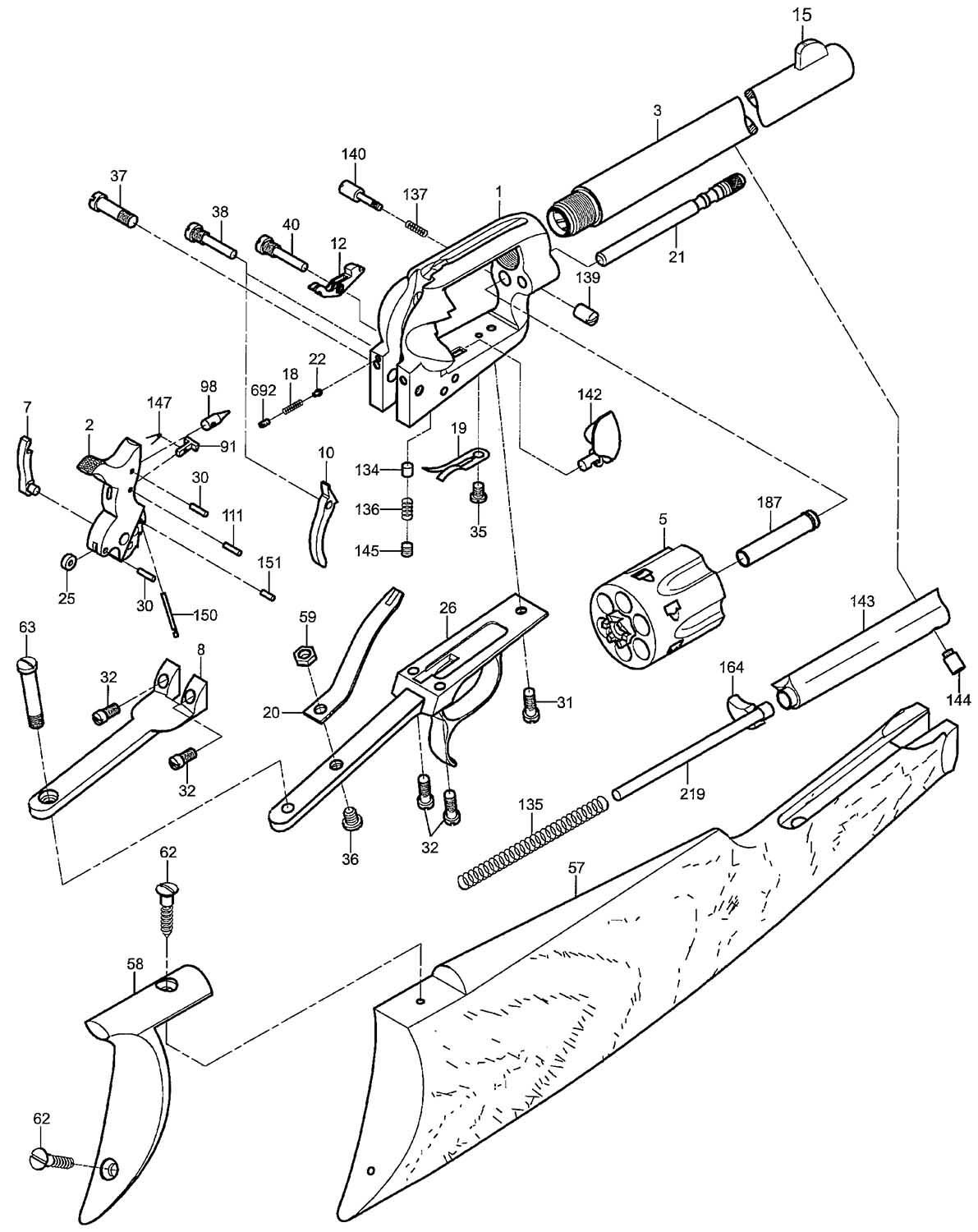

Rozkres revolverové karabiny výrobce A.UBERTI model 1873 Cattleman Carbine.

0409



N. Code No. Q.ty Description
1 A4100001 1 CATTLEMAN FRAME ASSEMBLY
2 A0400002 1 SAA HAMMER WITH SAFETY ASSEMBLY
3 0406003 1 BARREL 18″QD .357MAG
5 0400005 1 CYLINDER .357MAG
7 0400007 1 HAND
8 0409008 1 BACKSTRAP
10 0400010 1 TRIGGER
12 0400012 1 BOLT
15 0946015 1 FRONT SIGHT
18 0400018 1 HAND SPRING -COIL TYPE
19 0000019 1 TRIGGER BOLT SPRING
20 0409020 1 MAIN SPRING
21 0400021 1 BASE PIN
22 0400022 1 HAND PIN
26 0409026 1 TRIGGERGUARD
31 0000031 1 TRIGGERGUARD SCREW
32 0000032 4 REAR BACKSTRAP SCREW
35 0000035 1 SCREW
36 0000036 1 MAIN SPRING SCREW
37 0400037 1 HAMMER SCREW
38 0000038 1 TRIGGER SCREW
40 0000040 1 BOLT SCREW
57 0409057 1 STOCK
58 0120058 1 BUTT PLATE
59 0120059 1 MAIN SPRING LOOP SCREW
62 0200062 2 BUTT PLATE SCREW
63 0409063 1 TANG SCREW
135 4500135 1 EJECTOR SPRING
137 4500137 1 BASE PIN SPRING
139 0400139 1 BASE PIN NUT
140 0400140 1 BASE PIN SCREW
143 0400143 1 EJECTOR TUBE
144 0400144 1 EJECTOR TUBE SCREW
187 0400187 1 BASE PIN BUSHING
219 A0400219 1 SAA EJECTOR N.M.4.3/4″.357MG ASS.
692 0400692 1 HAND PIN SCREW
