UBERTI 1873 Cattleman Bisley Revolver

UBERTI 1873 Cattleman Bisley Revolver

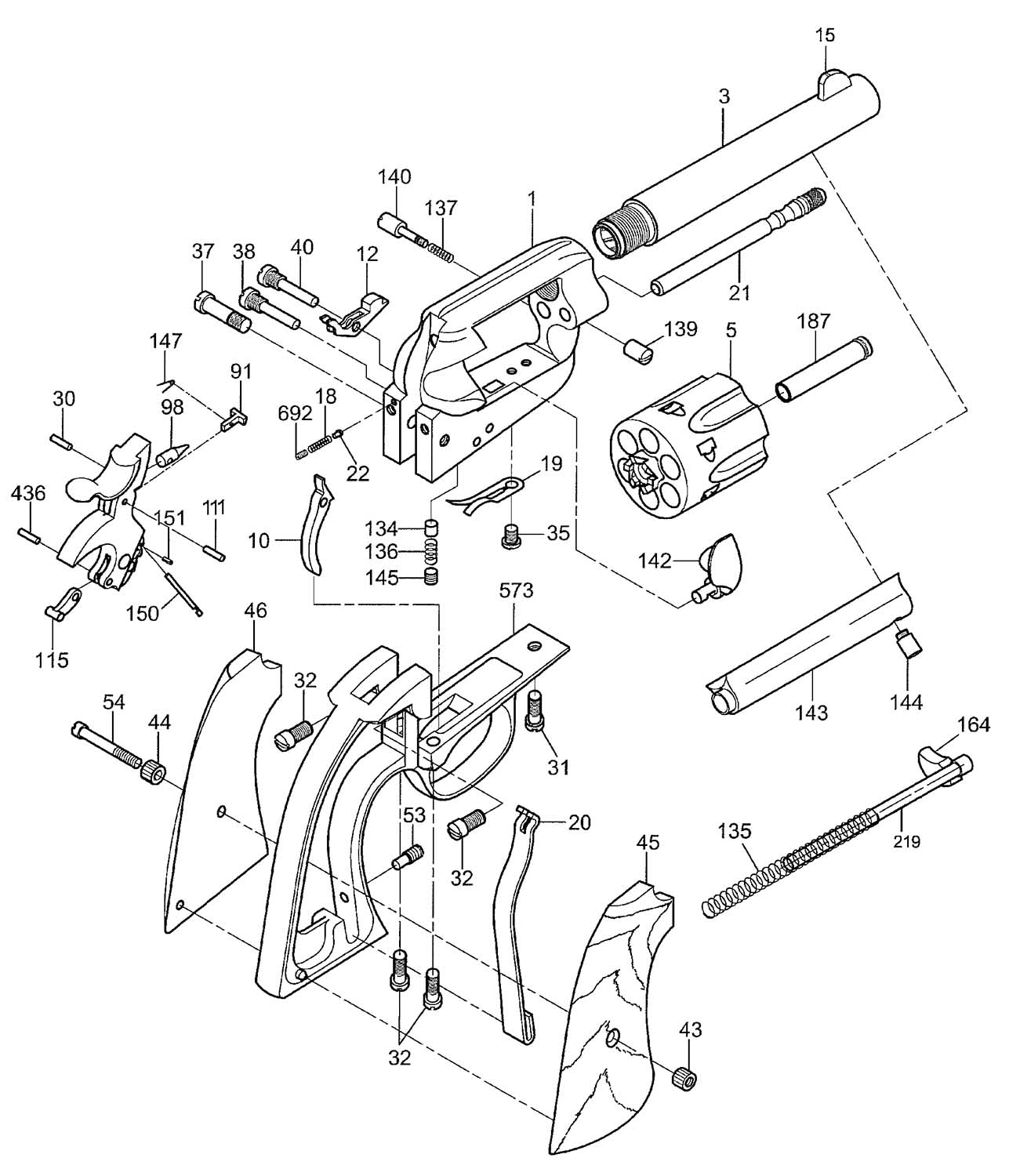

Rozkres revolveru výrobce A.UBERTI model 1873 Cattleman Bisley.

c1



N. Code No. Q.ty Description
1 A0602001 1 SAA BISLEY FRAME ASSEMBLY
2 A0602002 1 BISLEY HAMMER WITH SAFETY ASSEMBLY
3 0405003 1 BARREL 7.1/2″ .357MAG/38SP.
5 0400005 1 CYLINDER .357MAG
7 0400007 1 HAND
10 0602010 1 TRIGGER
12 0400012 1 BOLT
15 0946015 1 FRONT SIGHT
18 0400018 1 HAND SPRING -COIL TYPE
19 0000019 1 TRIGGER BOLT SPRING
20 0602020 1 MAIN SPRING
21 0400021 1 BASE PIN
22 0400022 1 HAND PIN
31 0000031 1 TRIGGERGUARD SCREW
32 0000032 4 REAR BACKSTRAP SCREW
35 0000035 1 SCREW
37 0400037 1 HAMMER SCREW
38 0000038 1 TRIGGER SCREW
40 0000040 1 BOLT SCREW
43 0602043 1 RIGHT GRIP NUT
44 0602044 1 LEFT GRIP NUT
45 0602045 1 RIGHT GRIP
46 0602046 1 LEFT GRIP
53 1000053 1 MAIN SPRING SCREW
54 0602054 1 GRIP SCREW
135 4500135 1 EJECTOR SPRING
137 4500137 1 BASE PIN SPRING
139 0400139 1 BASE PIN NUT
140 0400140 1 BASE PIN SCREW
143 0400143 1 EJECTOR TUBE
144 0400144 1 EJECTOR TUBE SCREW
187 0400187 1 BASE PIN BUSHING
219 A0400219 1 SAA EJECTOR N.M.4.3/4″.357MG ASS.
573 0602573 1 BACKSTRAP
692 0400692 1 HAND PIN SCREW
